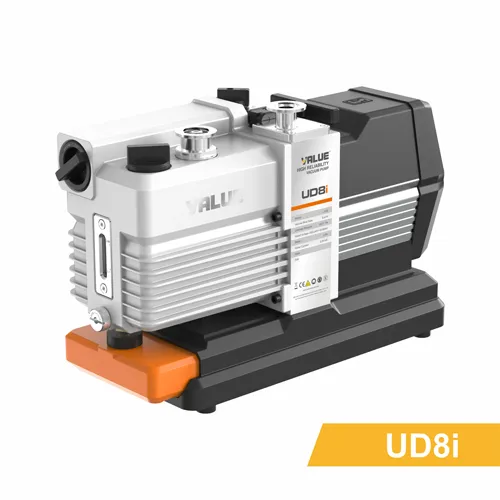

The UD i Series is a vacuum pump with high reliability and easy maintenance for cutting-edge scientific experiments. Its core components are treated with anti-corrosion technology to prevent the product from being eroded by corrosive substances. It adopts shielding technology and magnetic drive technology to achieve static sealing. This solves the oil leakage problem caused by traditional dynamic sealing structures for users and ensures the reliable operation of the vacuum pump in environments with high water vapor and highly corrosive gases. Equipped with a gear pump with forced lubrication, an automatic anti-oil return structure, and a built-in high-quality oil mist filter, it provides you with a clean, quiet and comfortable vacuum environment. Meanwhile, the CE-certified DC brushless motor and one-touch ECO function enable high-efficiency energy conservation. The UDi Series vacuum pump is especially suitable for fields such as scientific research, laboratories, medical and phar
Features of the UDi 4-16 Highly Reliable vacuum pumps for Harsh Environment
Features of the UDi 4-16 Highly Reliable vacuum pumps for Harsh Environment
  • Clean and Eco-friendly

Equipped with an automatic anti-oil return valve to prevent pump oil contamination when the pump is shut down; built-in high-quality oil mist filter to avoid oil mist pollution.


  • Oil Leakage-free

Adopts magnetic drive technology to convert dynamic sealing into static sealing, which extends the pump's service life and ensures no oil leakage while maintaining cleanliness.


  • Easy Oil Change

Integrated ball valve + built-in oil pot for convenient oil replacement.


  • Corrosion-resistant

The entire pump is treated with anti-corrosion technology, with fluororubber seals and stainless steel springs.


  • Energy-efficient

Features a DC brushless motor and a one-touch energy-saving button to achieve high-efficiency energy conservation.

Parameter of UDi 4-16 Highly Reliable vacuum pumps for Harsh Environment

ModelUD 4iUD 8iUD 12iUD 16i
Peak Pumping Speed (m³/h)4(50Hz/60Hz)8(50Hz/60Hz)12(50Hz/60Hz)16(50Hz/60Hz)
without gas ballast(pa)0.50.50.50.5
with gas ballast(pa)3333
Input Power Supply200-240V200-240V200-240V200-240V
Rated Power(kW)0.250.250.370.37
Input Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Operating Current(A)2.52.53.53.5
Inlet/Exhaust PortKF25KF25KF25KF25
Oil Capacity(L)0.750.750.750.75
Dimensions L*W*H(mm)424*168*280424*168*280424*168*280424*168*280
Weight(kg)16.516.51717
Ambient Temperature(℃)5-40
Noise Level / 50Hz(dB)≤50≤52≤52≤54
