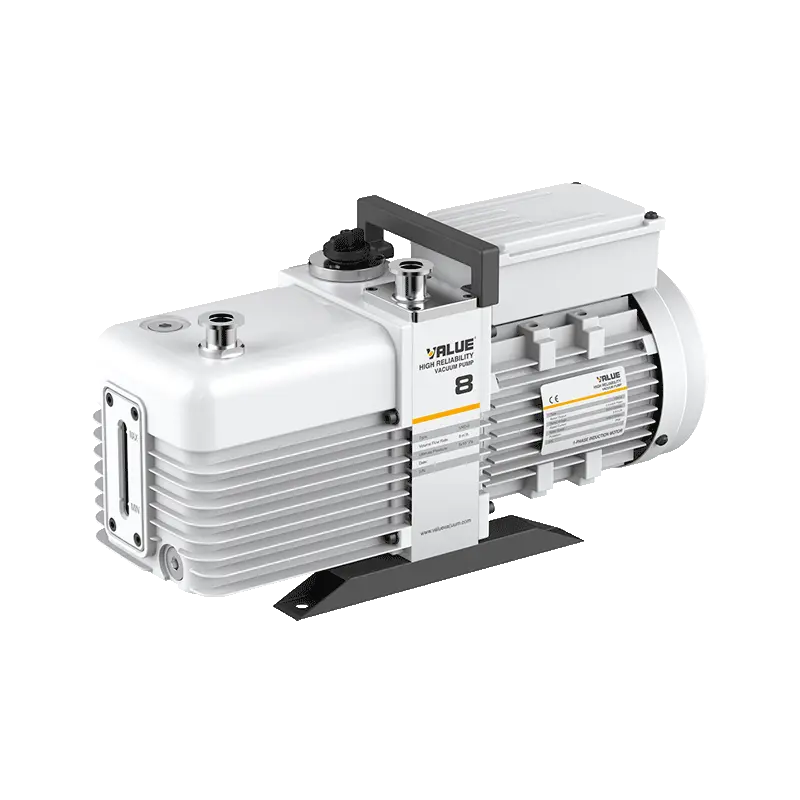

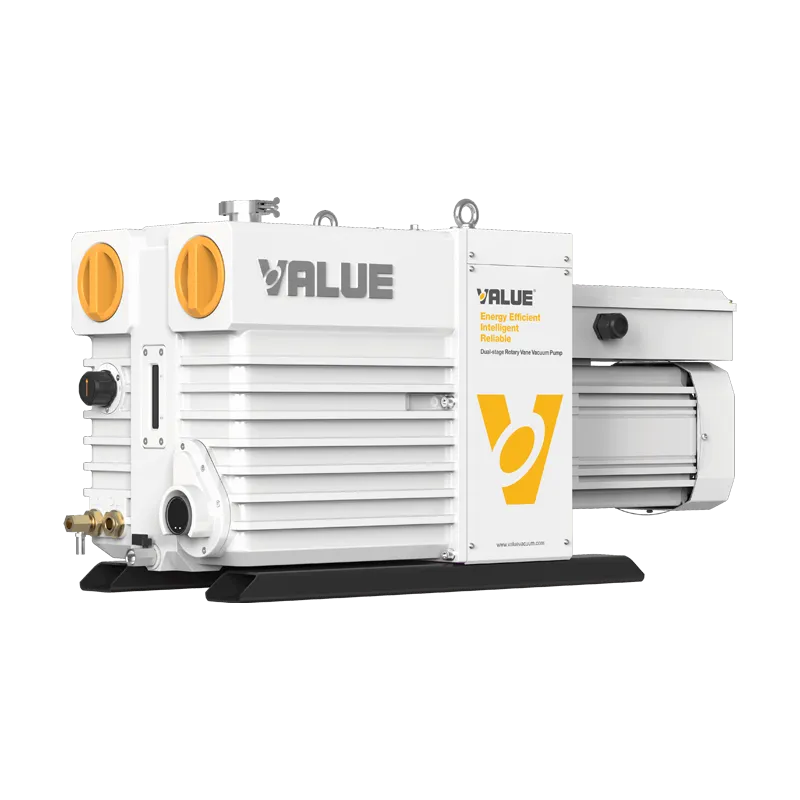

Our relentless pursuit of technical standards has brought the VALUE VRD Series Dual-Stage Rotary Vane Vacuum Pump to new heights of quality. Its integral cylinder structure and innovative circulating oil feeding system make it stable and unique, with the automatic anti-return oil valve and two adjustable gas ballasts creating a highly reliable vacuum pump. Through this fusion of technology and aesthetics, the design adheres to the consistent tradition of pursuing excellence, making the VRD series vacuum pumps a modern classic.
The product is suitable for various vacuum applications such as scientific research, teaching, laboratories, analytical instruments, medical devices, semiconductor materials, and other applications which require a high ultimate vacuum and low noise environment. The VRD series vacuum pumps can be used as the main pump of medium and low vacuum systems, and can also be used as the backing pump for medium-high and ultra-high vacuum systems, such as Roots pumps, diffusion pumps and molecular pumps.
Both single-stage and dual-stage rotary vane vacuum pumps are forms of oil-sealed rotary vane vacuum pumps.
Single-stage vacuum pumps feature a single-stage compression structure: the gas only passes through one rotary vane for pumping, while dual-stage vacuum pump adopts a dual-stage compression structure: the gas first passes through the low-pressure rotary vane for pumping, and then flows into the high-pressure rotary vane for re-pumping, thus achieving a higher vacuum degree. As the gas is compressed by the dual-stage rotary vane, this type of pump is more suitable for applications with higher vacuum requirements.
The dual-stage vacuum pump features a more complex one-piece structure design, with lighter volume and weight under the same pumping performance, which provides a higher pumping performance and higher vacuum degree compared with single-stage vacuum pumps; as a result, the product cost is also higher. Single-stage vacuum pumps are suitable for occasions with lower vacuum and high pumping speed requirements. The VSV Series Single-Stage Vacuum can provide pumping speeds up to 300m³/h, which is more suitable for use as the backing pump on a Roots pump, screw pump, or similar, in order to provide an ultra-high vacuum environment.
We are committed to providing customers with innovative, high-quality, cost-effective products and quality services.
